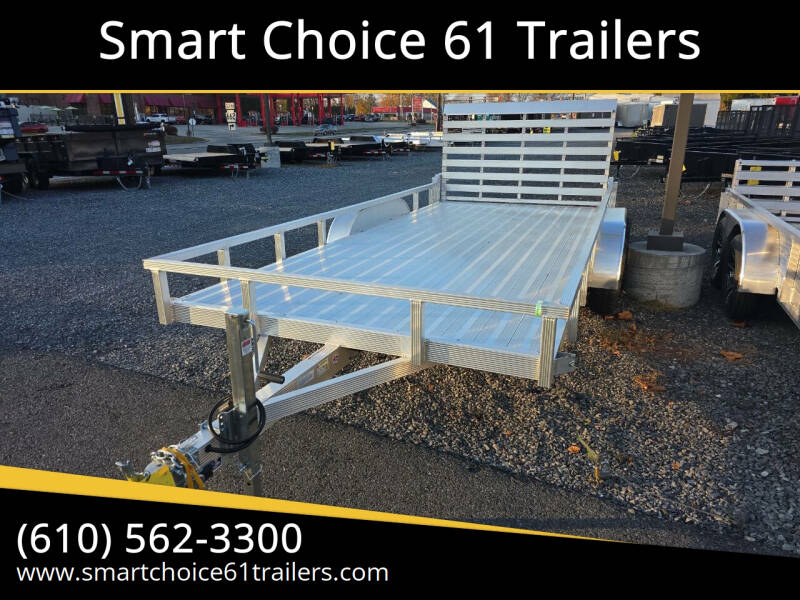

TRAILER SPECIFICATIONS Construction Specs Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers 2" x 2" Top Deck Rail 2" x 2" Top Deck Rail Uprights 5/4" x 6" Slip Resistant Aluminum Decking All Aluminum 4' Rear Ramp Component Specs LED Lights 15" Silver Powder Coated Wheels 15" Radial Tires 3,500 lb Capacity Axles 4" Drop Axles Double Eye Spring Suspension 7,000 lb Capacity Zinc Plated Coupler 7,600 lb Capacity, 30" Zinc Plated Safety Chains 2,500 lb capacity Zinc Plated Pad Jack Misc Specs 7-Way Round Wiring Harness 2" Ball Compatible Electric Brakes On Both Axles 13" Hitch Height 17" Deck Height 13" Rail Height Above the Deck 7,000 lb Gross Vehicle Weight Restriction (GVWR) MODEL AUT716TD Deck L x W 192” x 83” Overall L x W 240” x 101” Tongue (1) 3" x 5" x .250" Double Hollow Tongue Supports (2) 1.75" x 3" x .125" 2) 1.75" x 3" x .125" (2) 1.75" x 3" x .125" Frame Outer Rails (2) 2" x 4" x .140" Frame Crossmembers* Front & Rear (2) 3" x 4" x .125" Frame Crossmembers* Above Tongue (3) 1.75" x 3" x .125" Frame Crossmembers* Middle (4) 1.75" x 3" x .125" Curb Weight 980 lbs Payload Capacity 6020 lbs Standard 4' Ramp Wight Capacity*** 1,750 lbs Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs Stabilizer Jacks Optional * Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum ** 24" On-Center *** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground. EXCLUSIVE AUTD MODEL FEATURES Features you will not find on other brands: Spare Mount Side Rail Upright Ratchet Strap Hook or Single Stud Tie-Down Receiver Rear, Removable 3-position Ramp Side Frame Tie-Down Receiver NOTABLE AUTD MODEL FEATURES Spring Loaded Latch Gate Features you might not find on other brands: 1,000 lb. Swivel Jack with Wheel Aluminum Through-Bolted Greaseable Hinge Spring Loaded Latch Gate 15" Radial Tires Aluminum Fenders LED Lighting AUTD MODEL CONSTRUCTION Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum Jig Welded Construction for Consistency, Quality Fluted Aluminum Tube Tongues and Tongue Supports Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center) 2" Wide Aluminum Tube Top Deck Top Rails Aluminum Tube Top Deck Rail Uprights Fluted Aluminum Tube Tongues and Tongue Supports AUTD MODEL OPTIONS Popular Options: Aluminum Treadplate Sides Lateral Ramp (5' Wide) Bi-fold Ramp (Rear and/or Side) Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle) Lateral Ramp
